Functions to access the lsm9ds1. More...

#include <stdbool.h>
#include <stdint.h>
#include "lsm9ds1_debug.h"
#include "lsm9ds1_config.h"

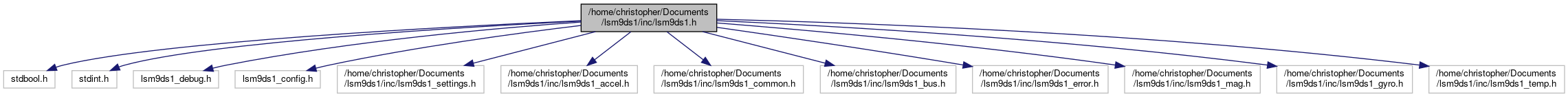

Include dependency graph for lsm9ds1.h:

Data Structures
struct	lsm9ds1_data_t
	Stores the raw data for each sub device. More...

struct	accelerometer_converted_data_t

struct	mag_converted_data_t

struct	gyro_converted_data_t

struct	lsm9ds1_converted_data_t
	Stores the converted data for each sub device. More...

struct	lsm9ds1_device_t
	Data and configurations for the lsm9ds1 device. More...

Macros
#define	_BUILD_VERSION BUILD_VERSION

Typedefs
typedef struct lsm9ds1_data_t	lsm9ds1_data_t
	Stores the raw data for each sub device.

typedef struct accelerometer_converted_data_t	accelerometer_converted_data_t

typedef struct mag_converted_data_t	mag_converted_data_t

typedef struct gyro_converted_data_t	gyro_converted_data_t

typedef struct lsm9ds1_converted_data_t	lsm9ds1_converted_data_t
	Stores the converted data for each sub device.

typedef struct lsm9ds1_device_t	lsm9ds1_device_t
	Data and configurations for the lsm9ds1 device.

Functions
lsm9ds1_status_t	get_temp (lsm9ds1_temperature_t *temperature)
	Read the temperature of the LSM9DS1. More...

lsm9ds1_status_t	get_accel (accelerometer_converted_data_t *data)
	Read the accelerometer of the LSM9DS1. More...

lsm9ds1_status_t	get_mag (mag_converted_data_t *data)
	Read the magnetometer of the LSM9DS1. More...

lsm9ds1_status_t	get_gyro (gyro_converted_data_t *data)
	Read the gyroscope from the LSM9DS1. More...

lsm9ds1_status_t	lsm9ds1_init ()
	Initialize the LSM9DS1. More...

lsm9ds1_status_t	lsm9ds1_close ()
	Close the LSM9DS1. More...

Detailed Description

Functions to access the lsm9ds1.

Author: Christopher Jordan-Denny

Date: Initializes the LSM9DS1 for the Raspberry Pi 3B+. Currently the device is wired to the first spi device. Sets up the magnetometer, accelerometer and gyroscope. Provides functions to read and write the data collected on the LSM9DS1.

Function Documentation

◆ get_accel()

lsm9ds1_status_t get_accel ( accelerometer_converted_data_t * data )

Read the accelerometer of the LSM9DS1.

Get the current converted accelerometer reading. The X, Y and Z coordinates are returned by this function.

Example Usage:

#include <lsm9ds1.h>
int main() {
        lsm9ds1_status_t status = LSM9DS1_UNKNOWN_ERROR;
    status = lsm9ds1_init();
    if(status < 0) {
        fprinf(stderr, "Error initializing lsm9ds1!\n");
    }
    accelerometer_converted_data_t data = {0};
        status = get_accel(&data);
        if(status < 0) {
            fprintf(stderr, "Error reading accelerometer!\n");
        }
    printf("Accelerometer x: %f\n", data.x);
    printf("Accelerometer y: %f\n", data.y);
    printf("Accelerometer z: %f\n", data.z);
    return status;
}

Parameters

data	the converted data read from the accelerometer.

See also: accelerometer_converted_data_t

Returns: Returns the function status as defined in lsm9ds1_status_t.

See also: lsm9ds1_status_t

Note: You must first initialize the lsm9ds1.

See also: lsm9ds1_init

◆ get_gyro()

lsm9ds1_status_t get_gyro ( gyro_converted_data_t * data )

Read the gyroscope from the LSM9DS1.

Get the current converted gyroscope reading. The X, Y and Z coordinates are returned by this function.

Example Usage:

#include <lsm9ds1.h>
int main() {
        lsm9ds1_status_t status = LSM9DS1_UNKNOWN_ERROR;
    status = lsm9ds1_init();
    if(status < 0) {
        fprinf(stderr, "Error initializing lsm9ds1!\n");
    }
    gyro_converted_data_t data = {0};
        status = get_gyro(&data);
        if(status < 0) {
            fprintf(stderr, "Error reading gyroscope!\n");
        }
    printf("Gyroscope x: %f\n", data.x);
    printf("Gyroscope y: %f\n", data.y);
    printf("Gyroscope z: %f\n", data.z);
    return status;
}

Parameters

data	the converted data read from the gyroscope.

See also: gyro_converted_data_t

Returns: Returns the function status as defined in lsm9ds1_status_t.

See also: lsm9ds1_status_t

Note: You must first initialize the lsm9ds1.

See also: lsm9ds1_init

◆ get_mag()

lsm9ds1_status_t get_mag ( mag_converted_data_t * data )

Read the magnetometer of the LSM9DS1.

Get the current converted magnetometer reading. The X, Y and Z coordinates are returned by this function.

Example Usage:

#include <lsm9ds1.h>
int main() {
        lsm9ds1_status_t status = LSM9DS1_UNKNOWN_ERROR;
    status = lsm9ds1_init();
    if(status < 0) {
        fprinf(stderr, "Error initializing lsm9ds1!\n");
    }
    mag_converted_data_t data = {0};
        status = get_mag(&data);
        if(status < 0) {
            fprintf(stderr, "Error reading magnetometer!\n");
        }
    printf("Magnetometer x: %f\n", data.x);
    printf("Magnetometer y: %f\n", data.y);
    printf("Magnetometer z: %f\n", data.z);

    return status;
}

Parameters

data	the converted data read from the magnetometer.

See also: mag_converted_data_t

Returns: Returns the function status as defined in lsm9ds1_status_t.

See also: lsm9ds1_status_t

Note: You must first initialize the lsm9ds1.

See also: lsm9ds1_init

◆ get_temp()

lsm9ds1_status_t get_temp ( lsm9ds1_temperature_t * temperature )

Read the temperature of the LSM9DS1.

Get the current converted temperature reading

Example Usage:

#include <lsm9ds1.h>
int main() {
        lsm9ds1_status_t status = LSM9DS1_UNKNOWN_ERROR;
    status = lsm9ds1_init();
    if(status < 0) {
        fprinf(stderr, "Error initializing lsm9ds1!\n");
    }
    lsm9ds1_temperature_t data = 0;
        status = get_temp(&data);
        if(status < 0) {
            fprintf(stderr, "Error reading temperature!\n");
        }
    printf("Temperature: %f\n", data);
    return status;
}

Parameters

data	the converted data read from the temperature monitor

See also: lsm9ds1_temperature_t

Returns: Returns the function status as defined in lsm9ds1_status_t.

See also: lsm9ds1_status_t

Note: You must first initialize the lsm9ds1.

See also: lsm9ds1_init

◆ lsm9ds1_close()

lsm9ds1_status_t lsm9ds1_close ( )

Close the LSM9DS1.

Close the open buses.

Example Usage:

#include <lsm9ds1.h>
int main() {
        lsm9ds1_status_t status = LSM9DS1_UNKNOWN_ERROR;
    status = lsm9ds1_init();
    if(status < 0) {
        fprinf(stderr, "Error initializing lsm9ds1!\n");
    }
    status = lsm9ds1_close();
    if(status < 0) {
        fprinf(stderr, "Error closing lsm9ds1!\n");
    }
    return status;
}

Returns: Returns the function status as defined in lsm9ds1_status_t.

See also: lsm9ds1_status_t

◆ lsm9ds1_init()

lsm9ds1_status_t lsm9ds1_init ( )

Initialize the LSM9DS1.

Initialize the lsm9ds1 according to the configuration file found in /etc/lsm9ds1.json. This function only has to be called once.

Example Usage:

#include <lsm9ds1.h>
int main() {
        lsm9ds1_status_t status = LSM9DS1_UNKNOWN_ERROR;
    status = lsm9ds1_init();
    if(status < 0) {
        fprinf(stderr, "Error initializing lsm9ds1!\n");
    }
    return status;
}

Returns: Returns the function status as defined in lsm9ds1_status_t.

See also: lsm9ds1_status_t

Data Structures

Macros

Typedefs

Functions

Detailed Description

Function Documentation
